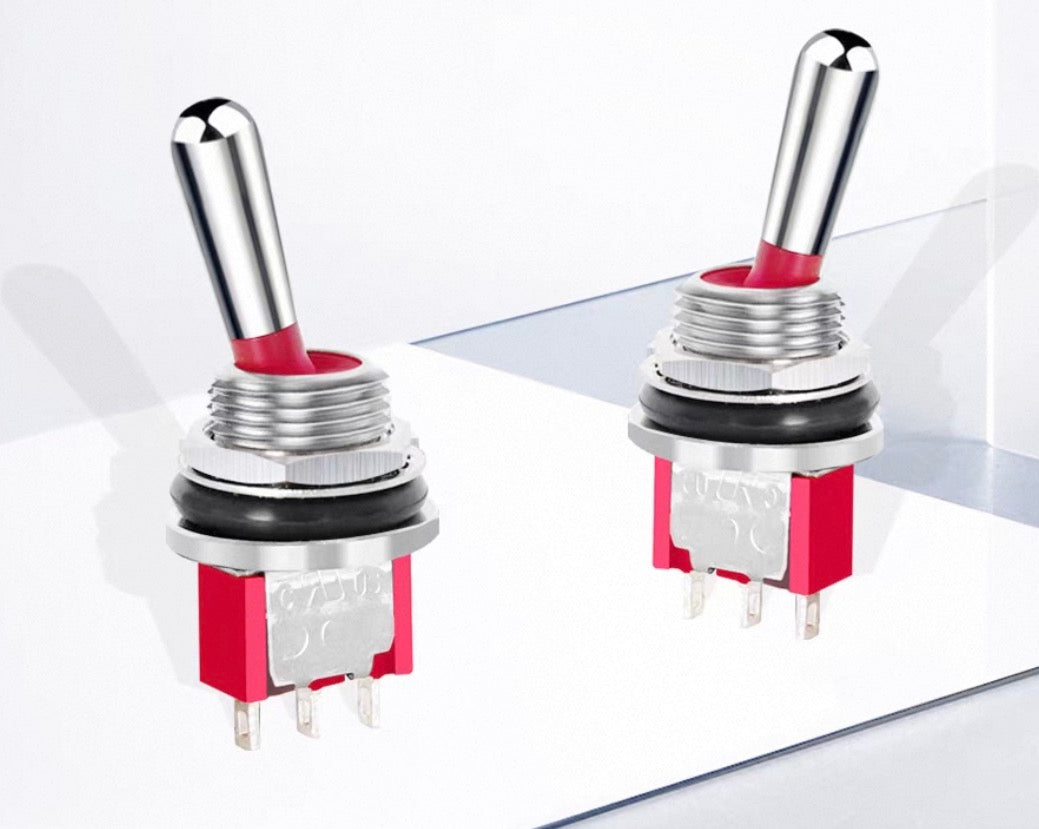

Waterproof IP67 SPDT Center Off Momentary Toggle Switch (Pro# SWT123 )

This waterproof IP67 rated toggle switch. It is designed for reliable performance in harsh environments. It features a durable stainless steel housing and a brass handle with chrome plating for enhanced strength and corrosion resistance.

Features:

• Waterproof IP67

• Momentary SPDT on-off-on
• Mechanical life: 100,000 cycles
• Contact resistance: 10 mΩ max
• Insulation resistance: 1000 MΩ min
• Operating temperature: -40°C to +85°C
• Termination type: Solder lug / plug-in terminals
• Mounting thread: 15/32-32 UNS
• Epoxy sealed base for added protection

Electrical Rating

• 6A at 120VAC
• 6A at 30 VDC

Materials

• Actuator: Chrome-plated brass
• Housing: Stainless steel
• Bushing: Nickel-plated brass

This switch is ideal for industrial equipment, automotive applications, marine systems, and other environments requiring dependable waterproof switching performance.
