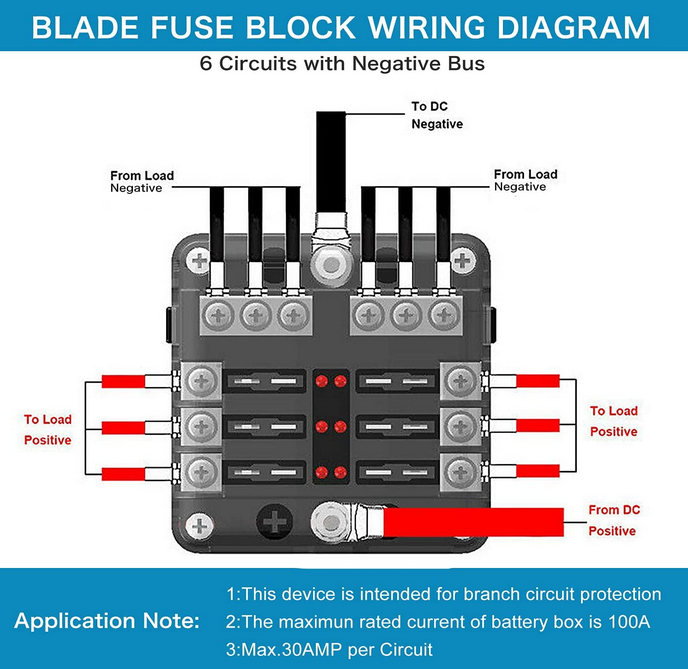

6 Way Fuse Block with Bus Bar (Pro# FUS550)
This unit is especially handy in a boat or caravan which may not have a chassis-ground type system. Each fuse output accepts up to a 30 amps, up to 100 amps combined, with handy fuse-blown indication. Fuses not included, uses standard automotive fuses.
Features:
Features:
-
Up to 30A per output
-
Red LED blown fuse indication
-
Negative bus bar
Specifications:
-
Main Input Line:
Terminal Rating: M5 Threaded Studs (32VDC, 100A maximum)
Wire Size: 4-6 AWG -
Single Output Line:
Terminal Rating: M4 Threaded Studs (32VDC, 30A maximum)
Wire Size: 12-16 AWG -
Terminals: Nickel Plated Copper
-
Screws: Stainless Steel
PRODUCT NO: FUS550
