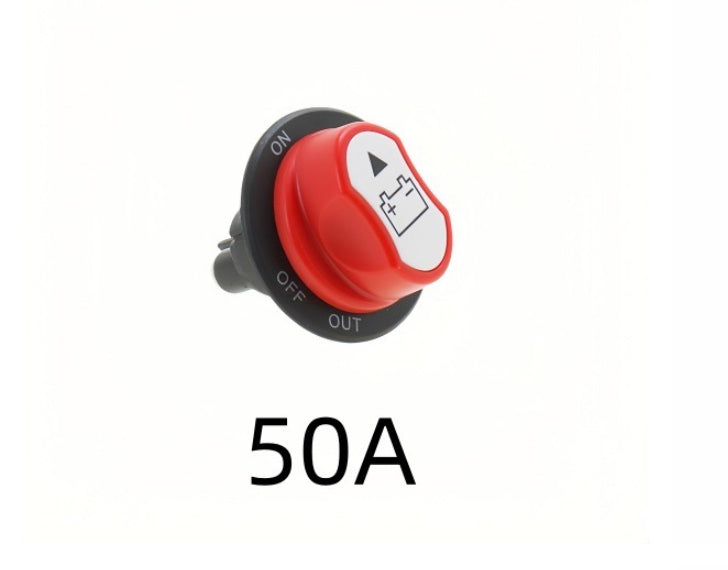

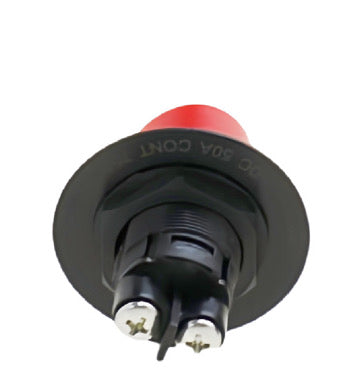

50A Panel Mount Battery Isolator Switch with Removable Key (Pro# SWT331)

This product is a heavy-duty battery disconnect switch, typically used in automotive electrical systems for safe and effective power isolation.

Specifications:

• Current Ratings: 50A
• Voltage Range: 12V–24V DC (suitable for most vehicle electrical systems)
• Mounting Hole Diameters: 22mm
• Terminal Sizes (connection pin diameters): 4mm
• Dimensions (approximate): 50mm×45mm
• Weights: 26g (50A)

Features:

• ON-OFF Control: Simple rotary switch control – ON for power, OFF for disconnection.
• Lockout Capability (OUT Position): The red knob can be removed in the "OUT" position, functioning like a key lockout to prevent accidental reconnection.
• Material: ABS plastic housing with brass contacts – ensuring durability and good conductivity.

  Ideal for:
• Automotive modification and repair
• RVs and boats
• Solar or backup battery systems
• Machinery and mobile power setups

Other Current also available: 100A (SWT332), 200A (SWT333)

PRODUCT NO: SWT331
